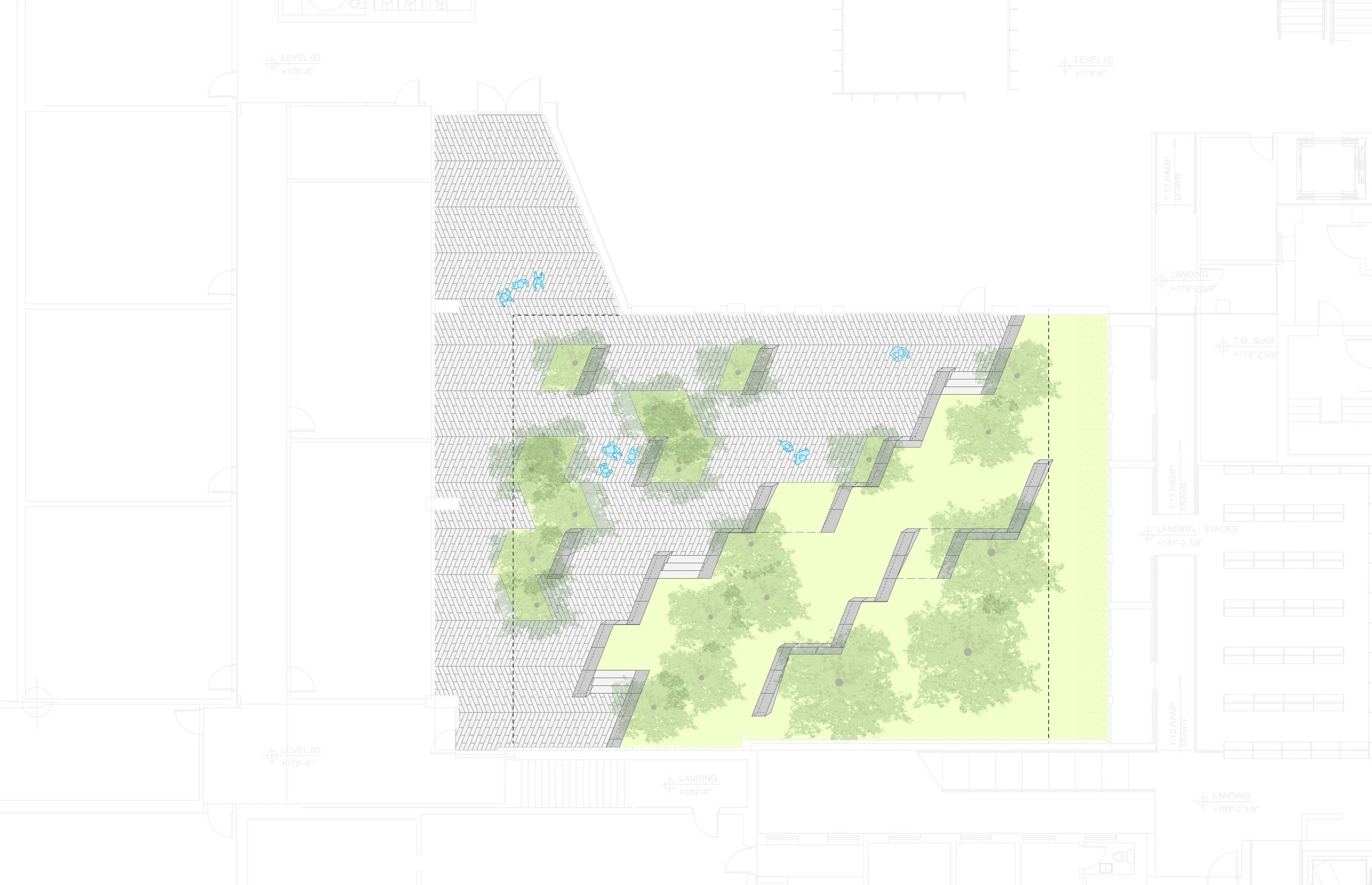

conceptual site organization diagrams
 concept of bisecting the space with a long diagonal zig-zag wall and repeating the walls throughout the site in a less continuous way
 plan prior to VE; ultimately, all of the planting and walls in the paved area were removed and we were limited to a quantity of 2 trees
 drainage concept diagram

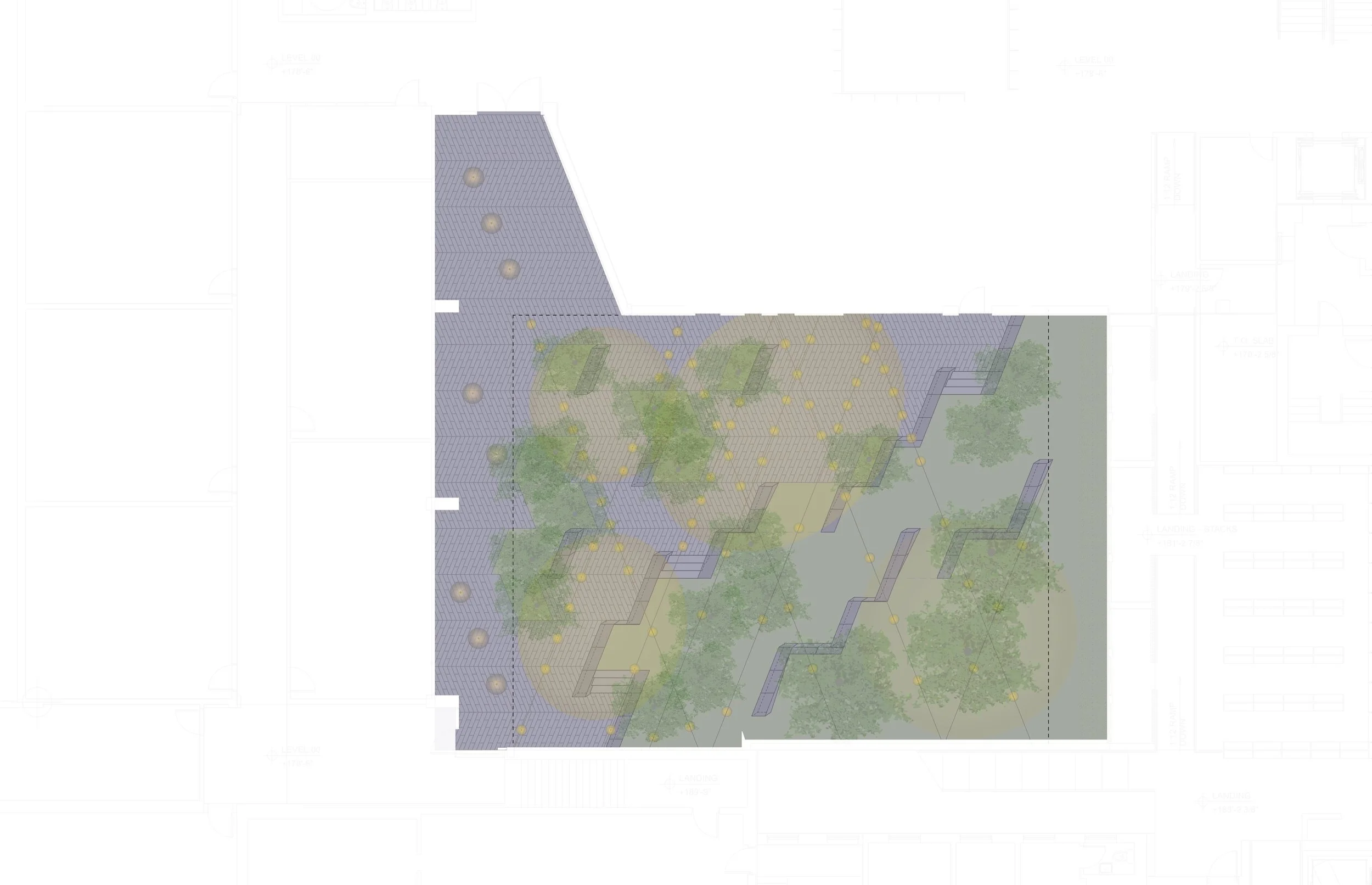

 catenary lighting diagram

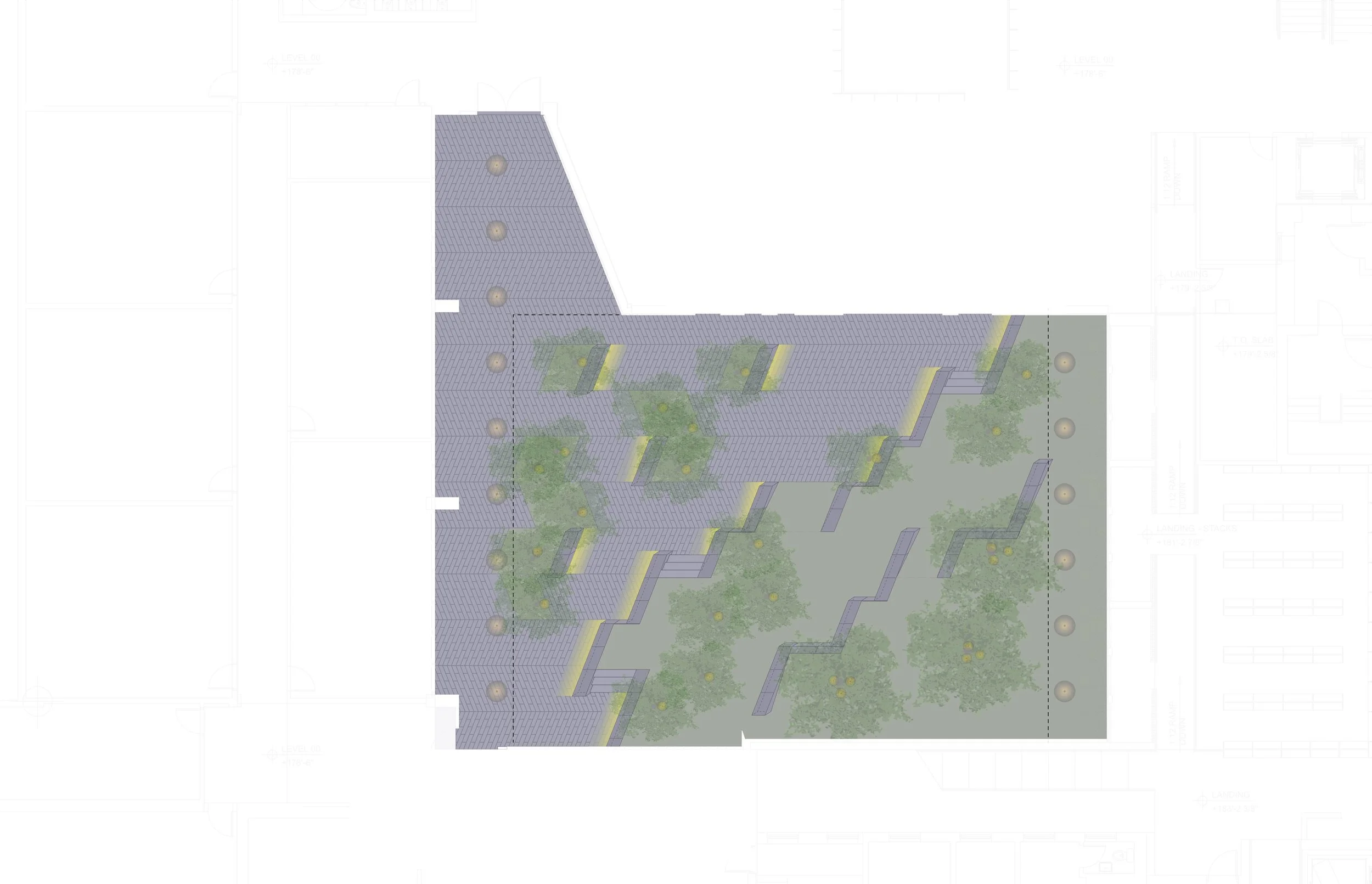

 bench lighting diagram
 rhino & photoshop rendering
 rhino & photoshop rendering
 overhead view of courtyard from upper deck of building
 planting concept vignettes
 VE planting concept vignettes; a grouping of several birch trees, a grouping of 3 canopy trees, or a single specimen shade tree; ultimately, we were limited to 2 birch trees
bench axon.jpg

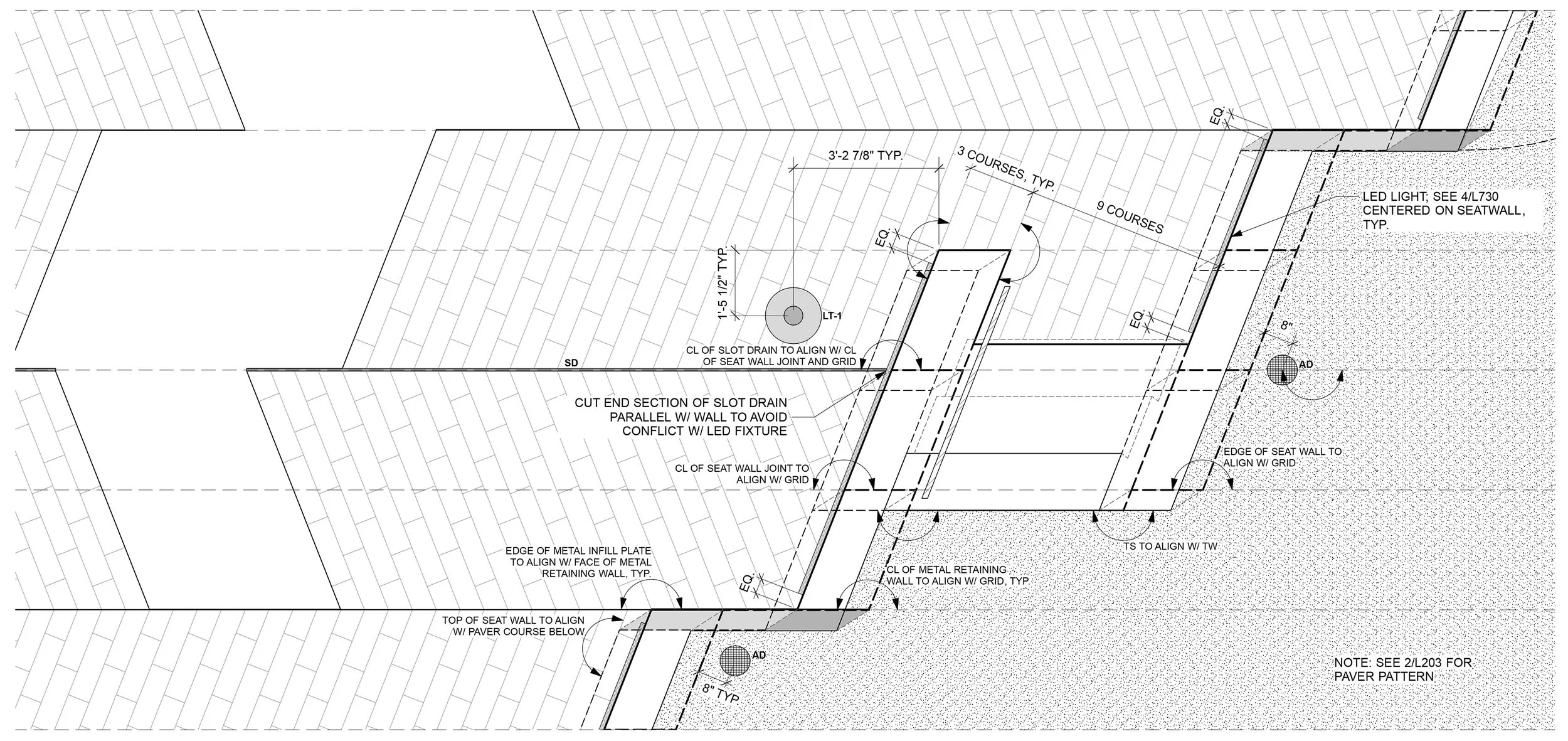

layout enlargement.jpg
paving layout.jpg

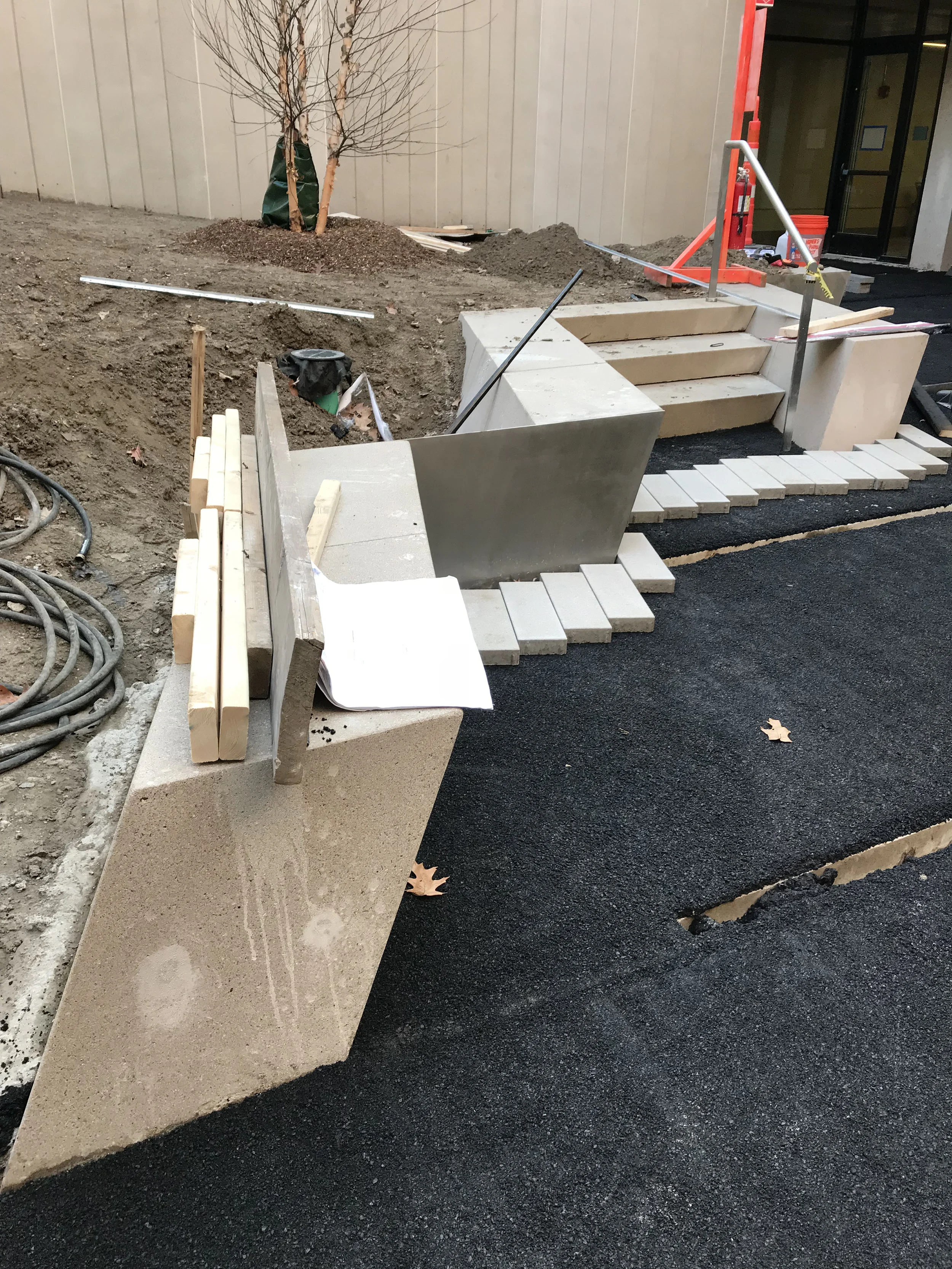

 construction progress of precast benches, stairs, and steel plates

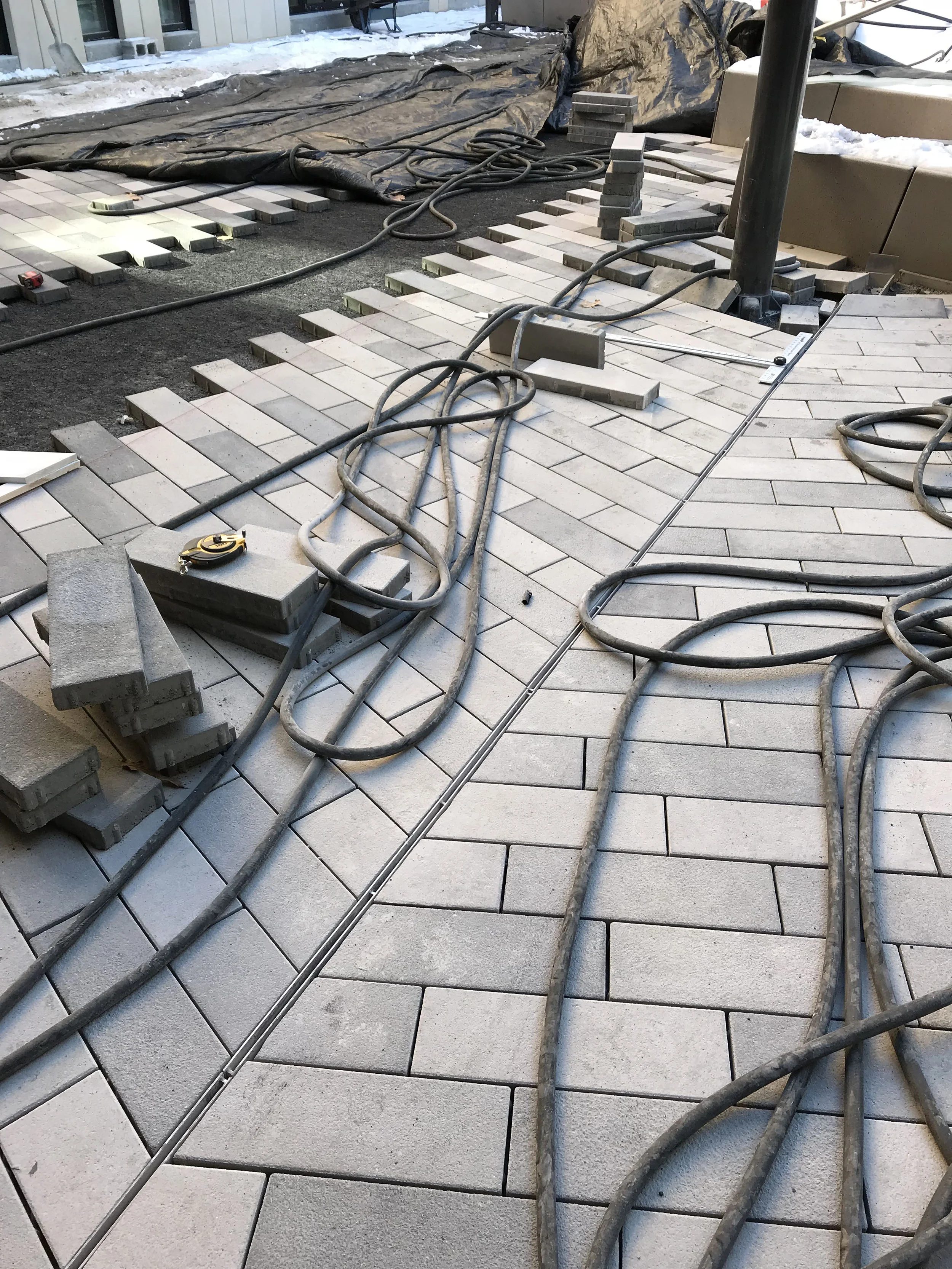

 paving construction progress
 paving construction progress
